Packaging Materials Schematic Diagram
Production& Quality

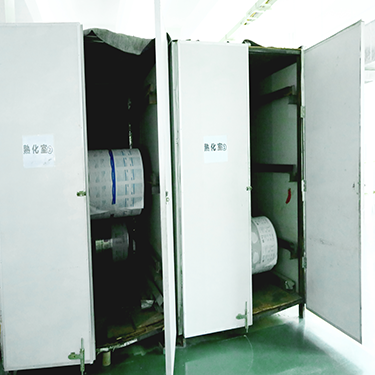

Artwork —Cylinder Making —-Printing —-Inspection—Lamination——–Aging—-
Slitting—-Bag Making—Packaging —-Finished Product store.

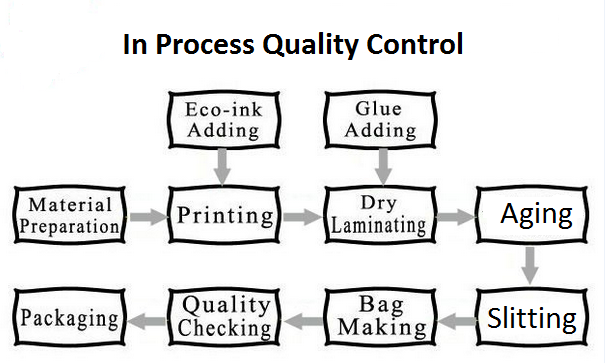

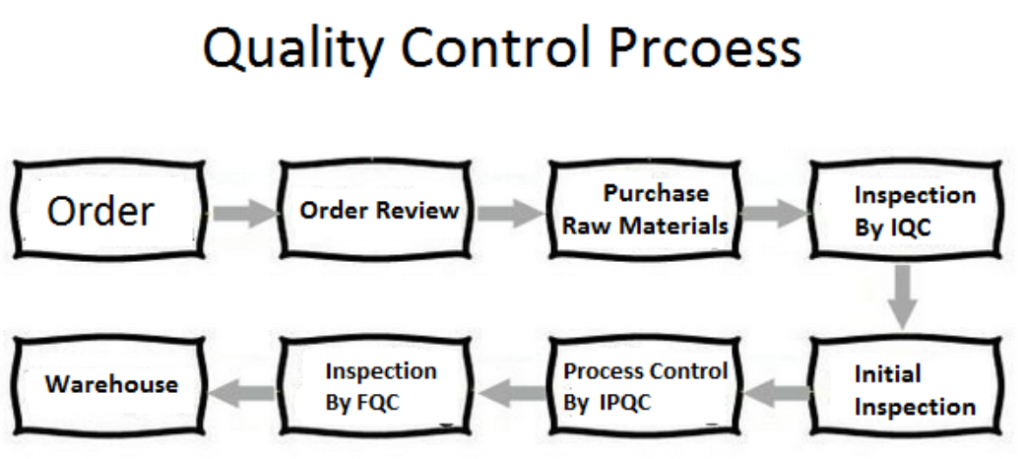

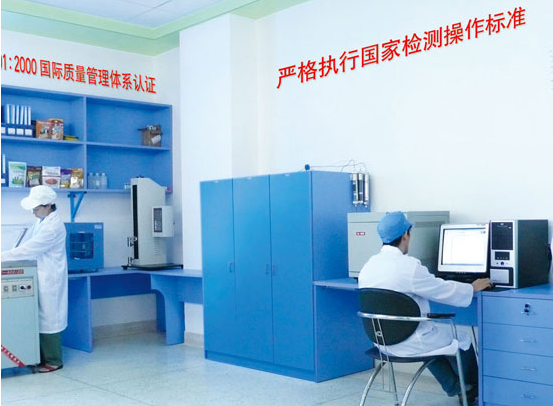

Quality Control Process
Inspection Instrument

Electronic Pulling Tester;

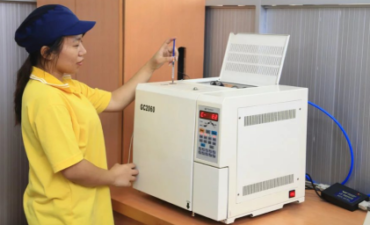

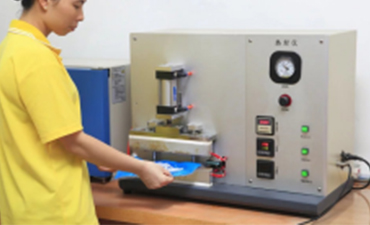

Gas Chromatograph, Heat Seal Tester;
Friction Coefficient Tester;otr, High Temperature Sterilization Pan;
Bacilli;Pendulum Impact Tester and MicrobeTester;

Inspection
p3

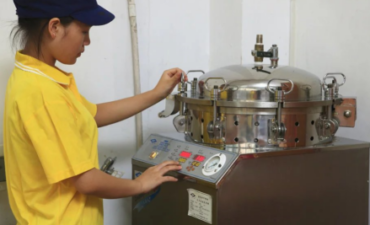

Inspection01

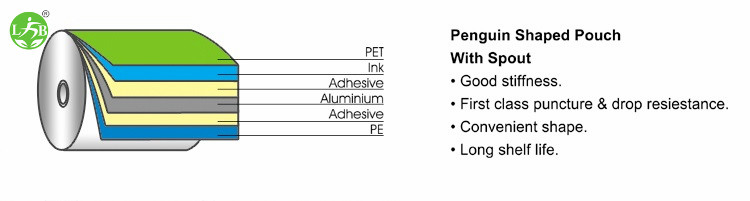

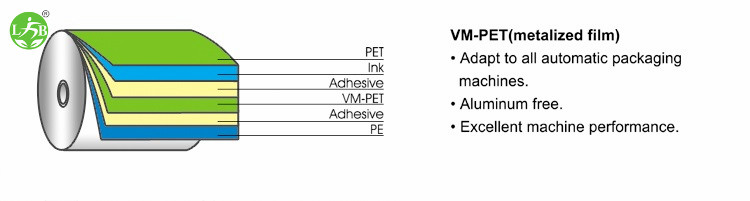

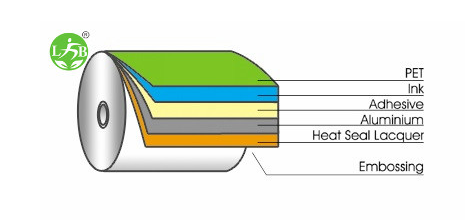

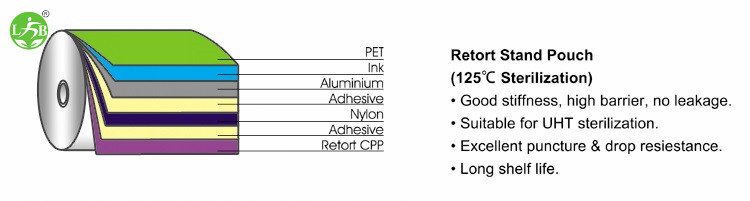

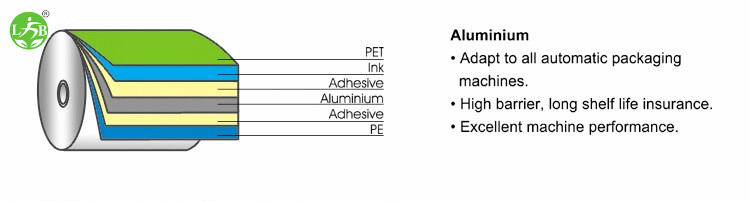

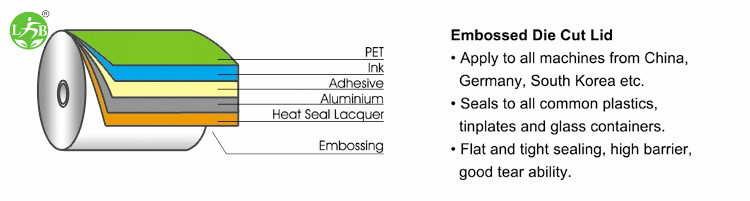

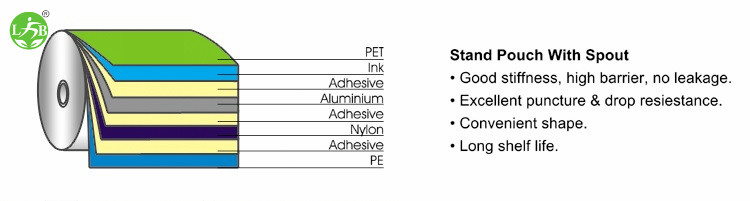

Packaging Materials Schematic Diagram &Advantage

Adapt to all automatic packaging machines,
Excellent machines performance,
Seals to all common plastics,
Flat and Tight Sealing ,Good Stiffness ,High Barrier,Good Tear Ability,Convenient Shape,No Leakage,Long shelf Life.
Suitable for UHT sterilization
Excellent puncture & drop resistance

Material Use Analysis

Film Structure Common Uses
Polypropylene(PP-OPP) Most widely used film.Often used in snack foods,Candy,Baked goods and many other industries
Foil Laminations High Barrier Properties for air and light sensitive products
Polyester (PET) Good heat resistance makes it ideal for products cooked in microwaves or ovens .Such as garlic ,bread .
Low Density Polyethylene (LDPE) Least expensive polymer film.Often used for shink applications such as pizza,soap,candles etc
High Density Polyethylene(HDPE) High Moisture barrier .Good for powders,Cheese, Electronic Parts etc .
Paper/Polyethylene Laminations Frozen food products such as Pot Pies and Burritos

Products Process

Comfirm Design&Make Mould

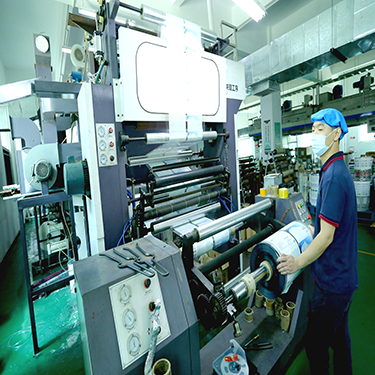

Printing

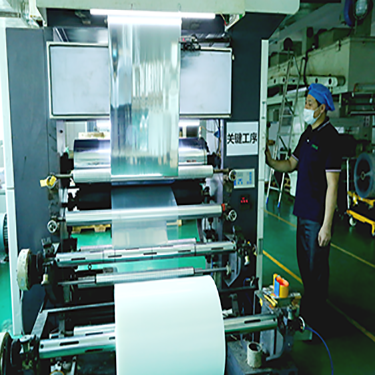

Lamination

Drying

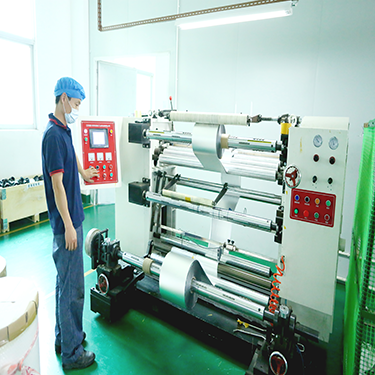

Slitting

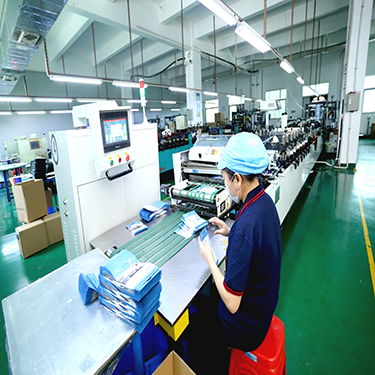

Pouches Making

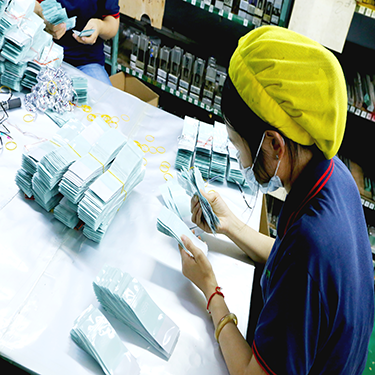

QC

Packing

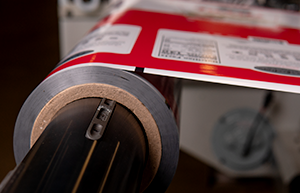

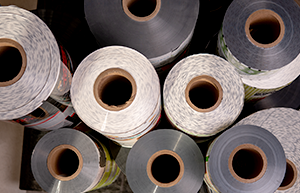

Flexible Roll Film Detail

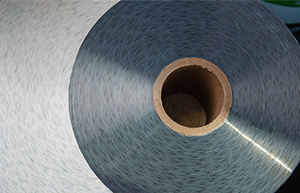

Film Inside roll diameter 75mm /Outside roll diameter 350mm

Flexible Roll Film Laminated Specification (2Layer/3Layer/4Layer)

Flexible Roll Film Width Size (W60MM–980MM)

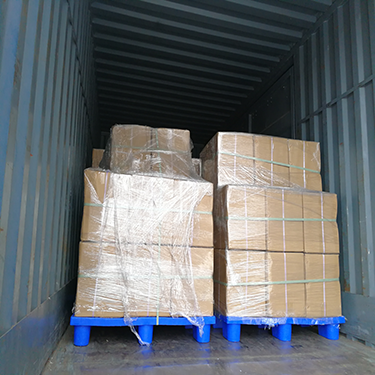

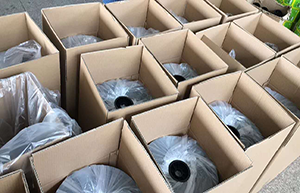

Packaging the Roll Film (PE inside/Plastic Rubber Plug/Export Paper Cartons)

Flexible Pouches Detail

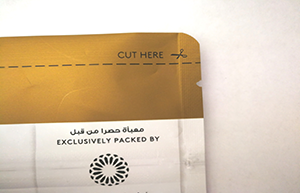

Easy Tear

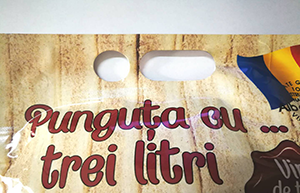

Hang-Holes 1

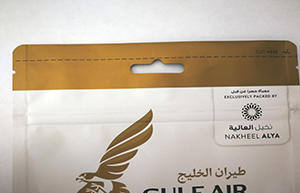

Hang-Holes 2

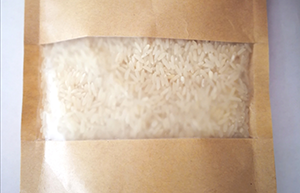

Window

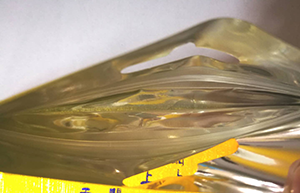

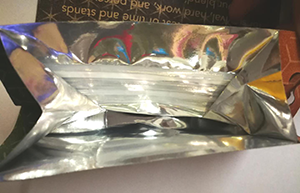

Zip–Closures

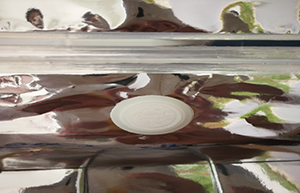

Inside Valve

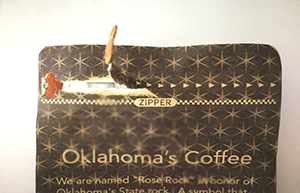

Open pouches style

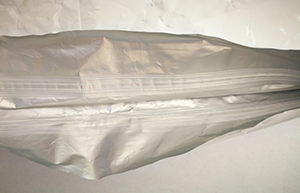

Child Resistant Zip-Closures

Inside Valve

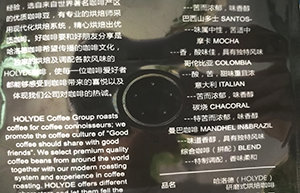

Out side coffee valve

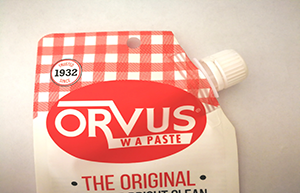

Spout

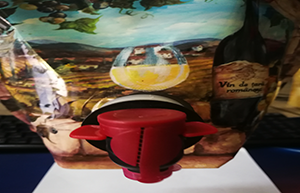

Wine spout
